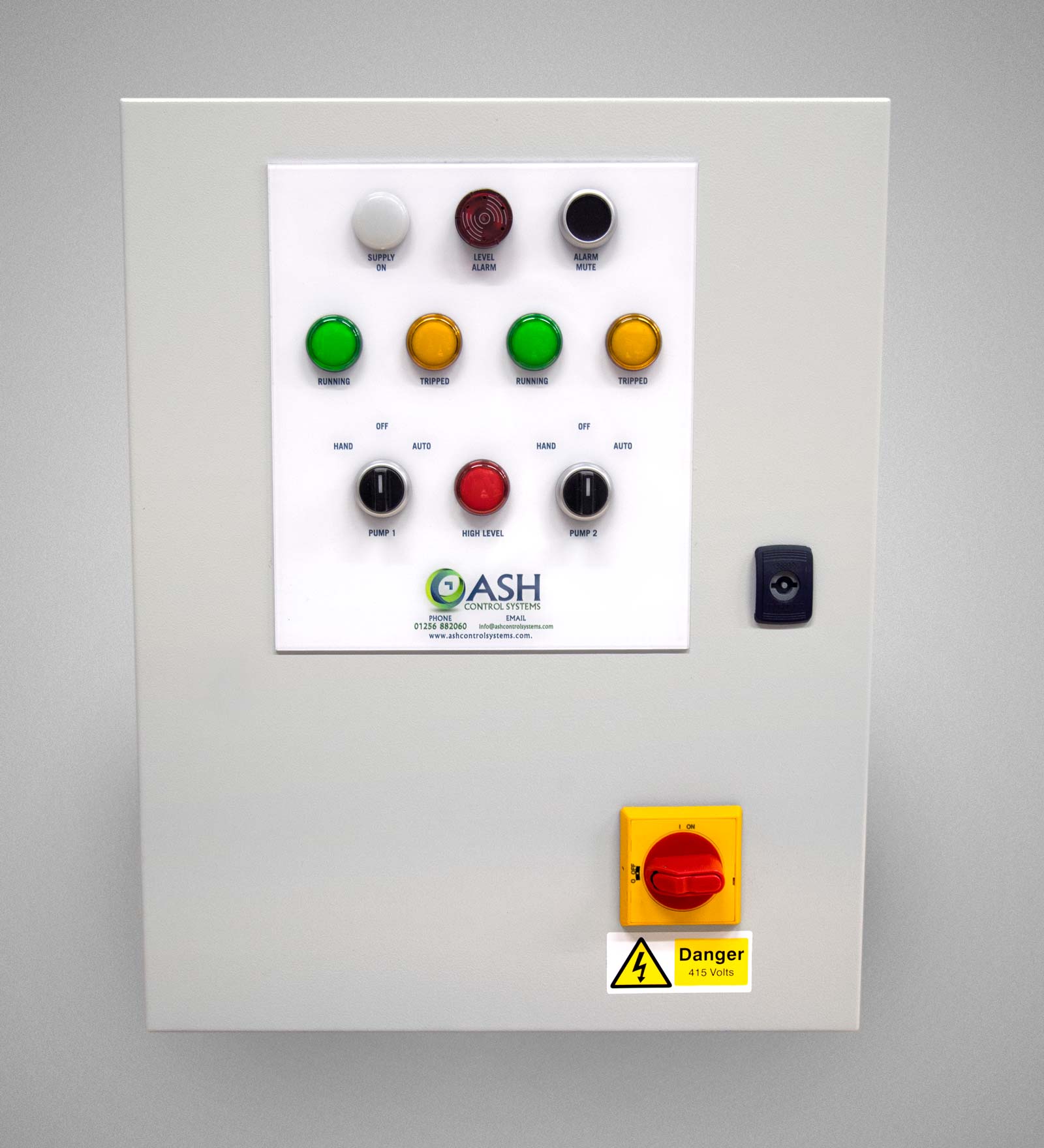

Dual Pump Panel

This is our standard sump pump control panel, typically for package pump systems. Manufactured in our workshop to suit individual requirements with an extensive choice of options available. Supply only or installed if required. Tested and inspected to ECA Standards giving you the peace of mind that all our panels are electrically safe & certified.

Enquire
  • Dual Pump Panel
  • Dual Pump Panel
  • Dual Pump Panel
    Internal

    Standard Configuration.

  • Dual Pump Panel
    Internal

    With battery back-up.

  • Dual Pump Panel
    External

    With hours and ammeters.

Product Details

Standard Specification:

  • Supply healthy indication
  • Pump 1 running indication, pump 2 running indication
  • Pump 1 tripped indication, pump 2 tripped indication
  • High water level indication
  • High level audible complete with mute pushbutton
  • 24vAC to terminals for remote alarm (high level)
  • Hand off auto switch per pump
  • Volt free contact for high level ( pump trip optional)
  • Personalised Fascia style label
  • Control Circuit transformer for low voltage (24vac) control circuit
  • Primary and secondary protection
  • Motor control circuit breakers/ contactors per pump
  • Auto reset on pump over temp. ( stat terminals)
  • Bottom entry terminals, gland plate & mains
  • Personalised Auto-Cad drawings

Applications

  • Pump Control
  • Motor Applications
  • Heating & Ventilation
  • Building Management
  • Control Machinery
  • Refrigeration Process Control

Technical Specifications

  • Power Supply: 230V / 415V 1PH / 3PH
  • Enclosure: IP54, RAL7035
  • Dims: 500mm H x 500mm W x 200mm D*
  • Dims: 400mm H x 300mm W x 195mm D*
  • Weight: 19kg / 15kg

*Optional extras affect the size of the enclosure.

Order Reference

  • DP1 Dual Standard single phase control panel
  • DP3 Dual Standard three phase control panel
  • ECDP1 Dual Economy single phase control panel
  • ECDP3 Dual Economy three phase control panel

Optional Extras

View Extras →
Ammeters
Battery Backup
(EX) IS Barrier
